peak-motifs WT24h-Sup3

Sequence composition (test sequences)

Nb of peaks: 478
Total seq. size: 286 kb
Min length: 265 bp
Mean length: 598.835 bp
Max length: 1000 bp [ seq: converted purged ]

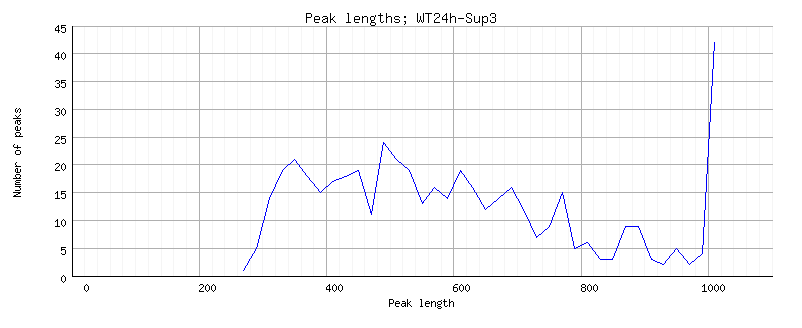

[ lengths: list distrib graph ]

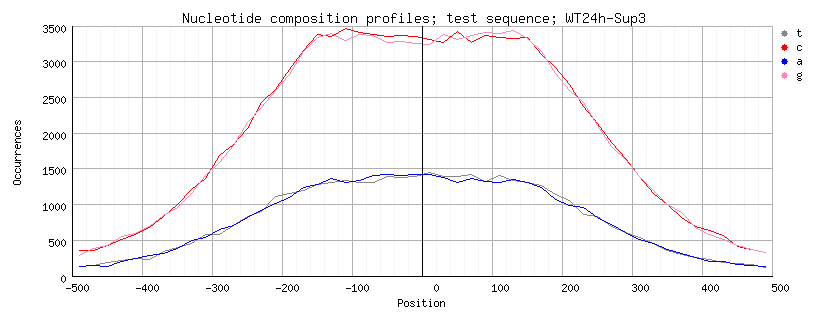

Nucleotide composition profiles

Transition frequencies
Position profiles

[ 1nt: freq transitions ]
[ bg model: Inclusive format ]
[ profile: table html(individual) ]

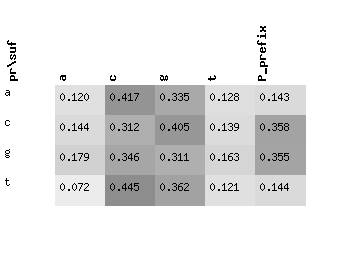

Dinucleotide composition profiles

Transition frequencies
Position profiles

[ 2nt: freq transitions ]
[ bg model: Inclusive format ]
[ profile: table html(individual) ]

Sequence composition (ctrl sequences)

Nb of peaks: 16361
Total seq. size: 8197 kb
Min length: 279 bp
Mean length: 500.985 bp
Max length: 501 bp [ seq: converted purged ]

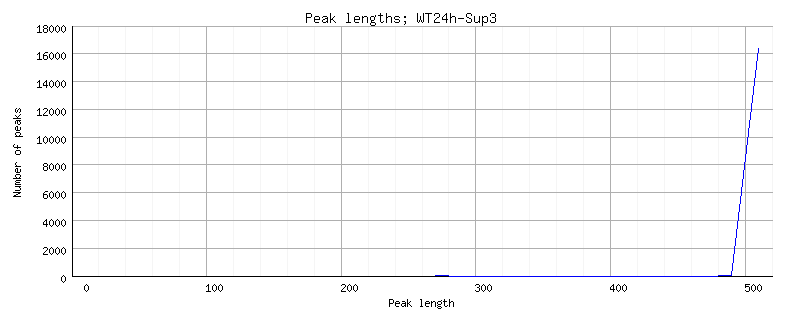

[ lengths: list distrib graph ]

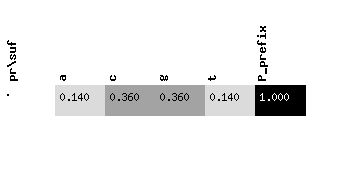

Nucleotide composition profiles

Transition frequencies
Position profiles

[ 1nt: freq transitions ]
[ bg model: Inclusive format ]
[ profile: table html(individual) ]

Dinucleotide composition profiles

Transition frequencies
Position profiles

[ 2nt: freq transitions ]
[ bg model: Inclusive format ]
[ profile: table html(individual) ]

Motif discovery

Motif 1 oligos_6nt_test_vs_ctrl_m1

k-mer sig=33.56; evalue=2.8e-34

whscccAAcTccysb

VSRGGAGTTGGGSDW

[ k-mers: statistics assemblies ]
[ matrix: tab_format transfac_format ]

Predicted sites on test peaks

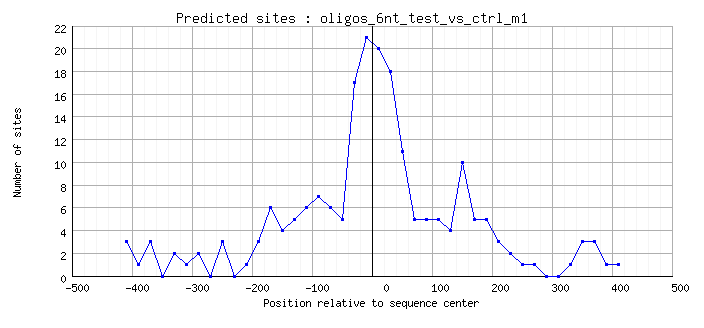

Distribution of sites

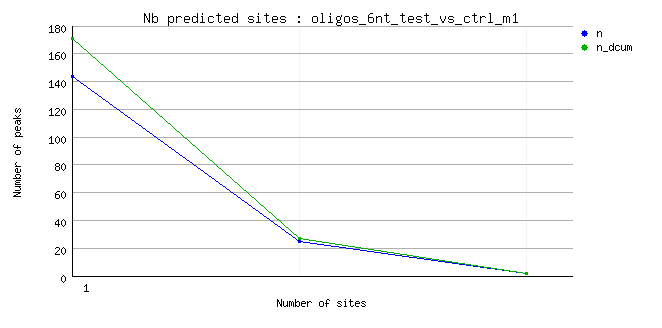

Nb of predicted sites per peak

Nb peaks with at least one predicted site: 171 (35.77%)
Max nb of predicted sites per peak: 3
(SAM_HupSHA_24h_merge_vs_INPUT_peak_709)
Mean nb of predicted sites per peak: 1.17

[ sites: text ]
[ distribution: text ]
[ sites per peak: text ]
[ enrichment: text graph ]

Motif 2 oligos_6nt_test_vs_ctrl_m2

k-mer sig=27.00; evalue=1e-27

wyscccAAcTgccsb

VSGGCAGTTGGGSRW

[ k-mers: statistics assemblies ]
[ matrix: tab_format transfac_format ]

Predicted sites on test peaks

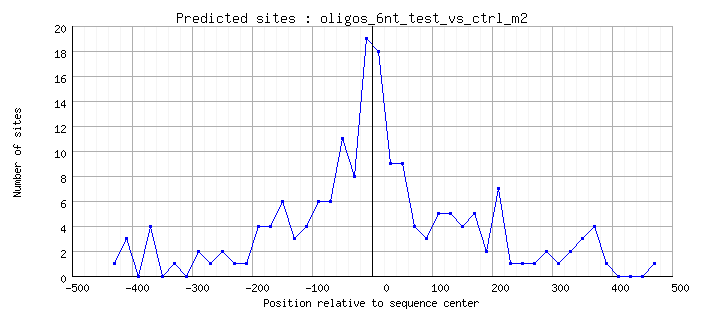

Distribution of sites

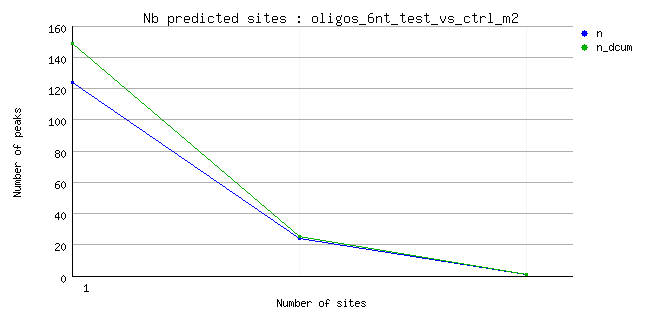

Nb of predicted sites per peak

Nb peaks with at least one predicted site: 149 (31.17%)
Max nb of predicted sites per peak: 3
(SAM_HupSHA_24h_merge_vs_INPUT_peak_634)
Mean nb of predicted sites per peak: 1.17

[ sites: text ]
[ distribution: text ]
[ sites per peak: text ]
[ enrichment: text graph ]

Motif 3 oligos_6nt_test_vs_ctrl_m3

k-mer sig=19.99; evalue=1e-20

ssrggAgTTcggsg

CSCCGAACTCCYSS

[ k-mers: statistics assemblies ]
[ matrix: tab_format transfac_format ]

Predicted sites on test peaks

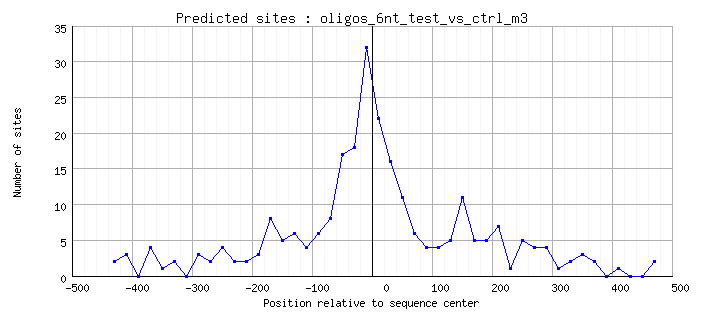

Distribution of sites

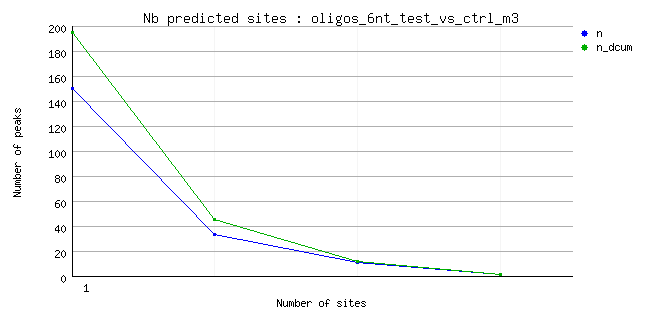

Nb of predicted sites per peak

Nb peaks with at least one predicted site: 195 (40.79%)
Max nb of predicted sites per peak: 4
(SAM_HupSHA_24h_merge_vs_INPUT_peak_603)
Mean nb of predicted sites per peak: 1.30

[ sites: text ]
[ distribution: text ]
[ sites per peak: text ]
[ enrichment: text graph ]

Motif 4 oligos_6nt_test_vs_ctrl_m4

k-mer sig=33.56; evalue=2.8e-34

wyscccAAcTcgyc

GRCGAGTTGGGSRW

[ k-mers: statistics assemblies ]
[ matrix: tab_format transfac_format ]

Predicted sites on test peaks

Distribution of sites

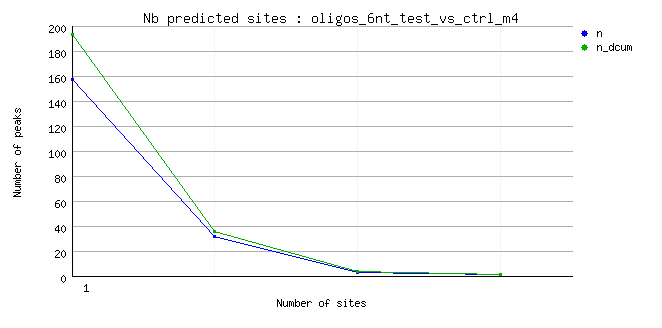

Nb of predicted sites per peak

Nb peaks with at least one predicted site: 193 (40.38%)
Max nb of predicted sites per peak: 4
(SAM_HupSHA_24h_merge_vs_INPUT_peak_607)
Mean nb of predicted sites per peak: 1.21

[ sites: text ]
[ distribution: text ]
[ sites per peak: text ]
[ enrichment: text graph ]

Motif 5 oligos_6nt_test_vs_ctrl_m5

k-mer sig=33.56; evalue=2.8e-34

srgggAGTTgcwsd

HSWGCAACTCCCYS

[ k-mers: statistics assemblies ]
[ matrix: tab_format transfac_format ]

Predicted sites on test peaks

Distribution of sites

Nb of predicted sites per peak

Nb peaks with at least one predicted site: 146 (30.54%)
Max nb of predicted sites per peak: 3
(SAM_HupSHA_24h_merge_vs_INPUT_peak_709)
Mean nb of predicted sites per peak: 1.18

[ sites: text ]
[ distribution: text ]
[ sites per peak: text ]
[ enrichment: text graph ]

Motif 6 oligos_7nt_test_vs_ctrl_m1

k-mer sig=16.99; evalue=1e-17

msgccAAcTcccgyw

WRCGGGAGTTGGCSK

[ k-mers: statistics assemblies ]
[ matrix: tab_format transfac_format ]

Predicted sites on test peaks

Distribution of sites

Nb of predicted sites per peak

Nb peaks with at least one predicted site: 120 (25.10%)
Max nb of predicted sites per peak: 3
(SAM_HupSHA_24h_merge_vs_INPUT_peak_645)
Mean nb of predicted sites per peak: 1.14

[ sites: text ]
[ distribution: text ]
[ sites per peak: text ]
[ enrichment: text graph ]

Motif 7 oligos_7nt_test_vs_ctrl_m2

k-mer sig=16.99; evalue=1e-17

ysgccAAcTcgTcsw

WSGACGAGTTGGCSR

[ k-mers: statistics assemblies ]
[ matrix: tab_format transfac_format ]

Predicted sites on test peaks

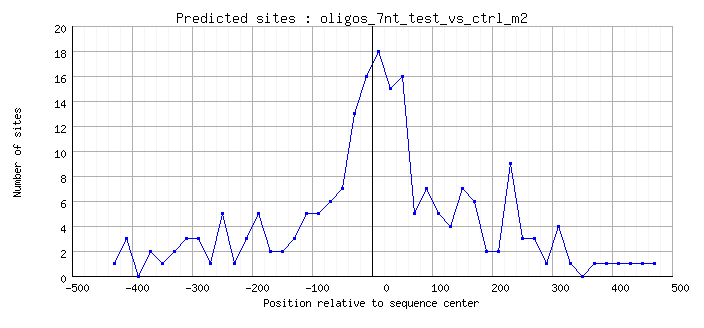

Distribution of sites

Nb of predicted sites per peak

Nb peaks with at least one predicted site: 164 (34.31%)
Max nb of predicted sites per peak: 3
(SAM_HupSHA_24h_merge_vs_INPUT_peak_675)
Mean nb of predicted sites per peak: 1.24

[ sites: text ]
[ distribution: text ]
[ sites per peak: text ]
[ enrichment: text graph ]

Motif 8 oligos_7nt_test_vs_ctrl_m3

k-mer sig=14.35; evalue=4.5e-15

wcgccgAAcTcccgsw

WSCGGGAGTTCGGCGW

[ k-mers: statistics assemblies ]
[ matrix: tab_format transfac_format ]

Predicted sites on test peaks

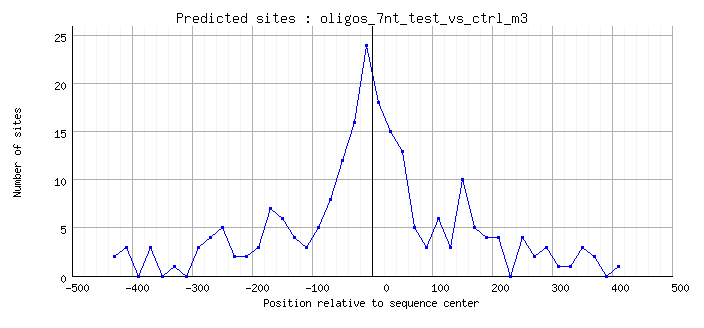

Distribution of sites

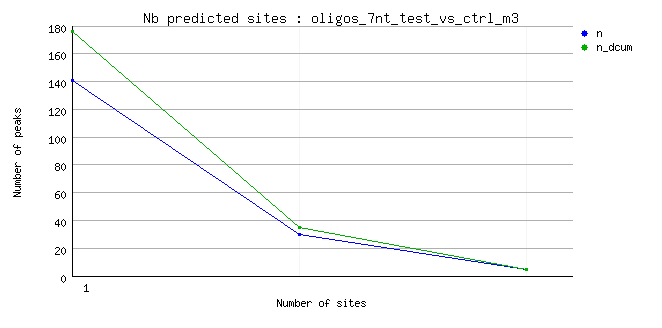

Nb of predicted sites per peak

Nb peaks with at least one predicted site: 176 (36.82%)
Max nb of predicted sites per peak: 3
(SAM_HupSHA_24h_merge_vs_INPUT_peak_748)
Mean nb of predicted sites per peak: 1.23

[ sites: text ]
[ distribution: text ]
[ sites per peak: text ]
[ enrichment: text graph ]

Motif 9 oligos_7nt_test_vs_ctrl_m4

k-mer sig=8.72; evalue=1.9e-09

msgccAAcTgccgyw

WRCGGCAGTTGGCSK

[ k-mers: statistics assemblies ]
[ matrix: tab_format transfac_format ]

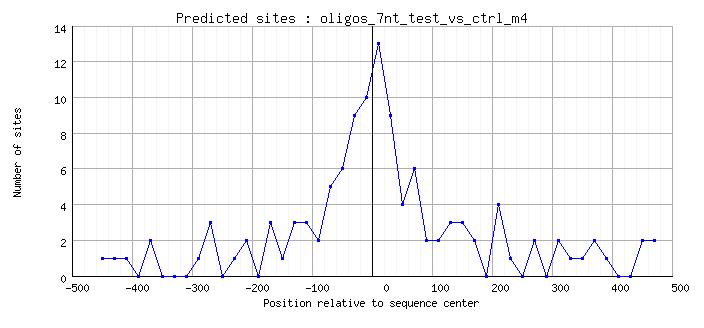

Predicted sites on test peaks

Distribution of sites

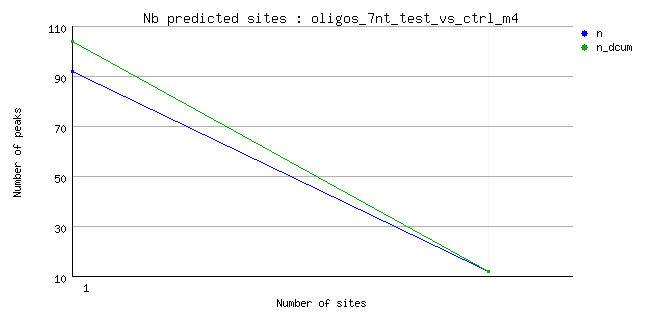

Nb of predicted sites per peak

Nb peaks with at least one predicted site: 104 (21.76%)
Max nb of predicted sites per peak: 2
(SAM_HupSHA_24h_merge_vs_INPUT_peak_799)
Mean nb of predicted sites per peak: 1.12

[ sites: text ]
[ distribution: text ]
[ sites per peak: text ]
[ enrichment: text graph ]

Motif 10 oligos_7nt_test_vs_ctrl_m5

k-mer sig=16.99; evalue=1e-17

wrcgggAgTTgggsg

CSCCCAACTCCCGYW

[ k-mers: statistics assemblies ]
[ matrix: tab_format transfac_format ]

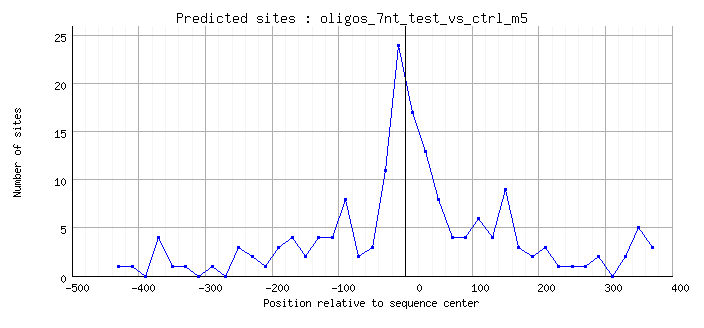

Predicted sites on test peaks

Distribution of sites

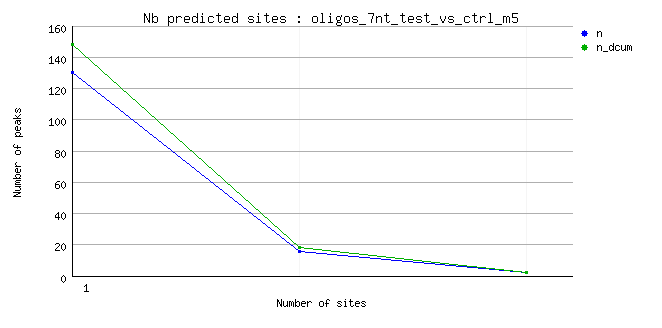

Nb of predicted sites per peak

Nb peaks with at least one predicted site: 148 (30.96%)
Max nb of predicted sites per peak: 3
(SAM_HupSHA_24h_merge_vs_INPUT_peak_634)
Mean nb of predicted sites per peak: 1.14

[ sites: text ]
[ distribution: text ]
[ sites per peak: text ]
[ enrichment: text graph ]

Predicted sites on test peaks (all motifs)

[tab]
[bed]

Word significance table
Word comparisons		[tab] [html] [heatmap]
Comparisons between discovered motifs
Discovered motifs versus discovered motifs		[ Discovered motif(s): tf ] [ table: html txt ] [ alignments (logo): html text ] [ clustering: html ] [ graph: gml (for CytoScape) ]

Log files
Parameters and files		[txt] [html]
Time log		[time table] [time log] [html]

Thomas-Chollier M, Herrmann C, Defrance M, Sand O, Thieffry D, van Helden J. (2012). RSAT peak-motifs: motif analysis in full-size ChIP-seq datasets. Nucleic Acids Res 40(4): e31.
Thomas-Chollier M, Darbo E, Herrmann C, Defrance M, Thieffry D, van Helden J. (2012). A complete workflow for the analysis of full-size ChIP-seq (and similar) data sets using peak-motifs. Nat Protoc 7(8): 1551-1568.
